Aegis Battery
$51.99 USD

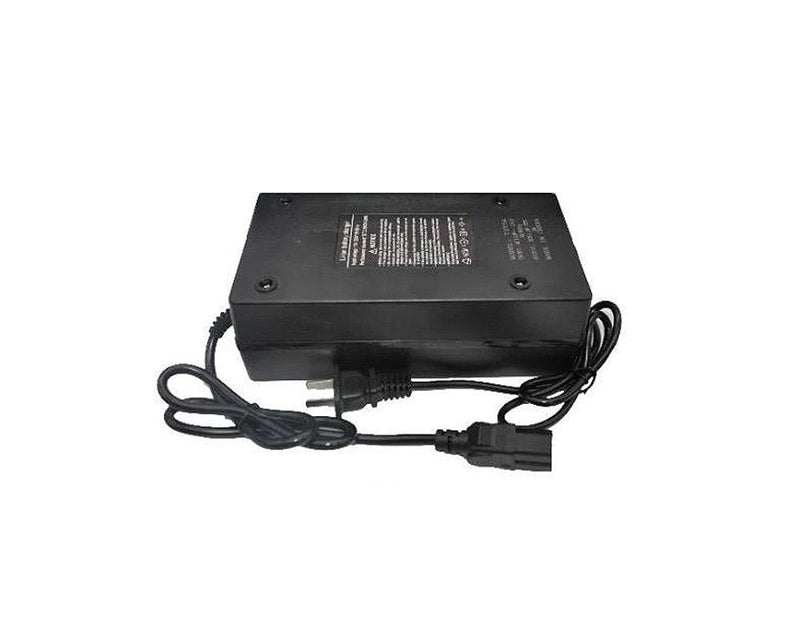

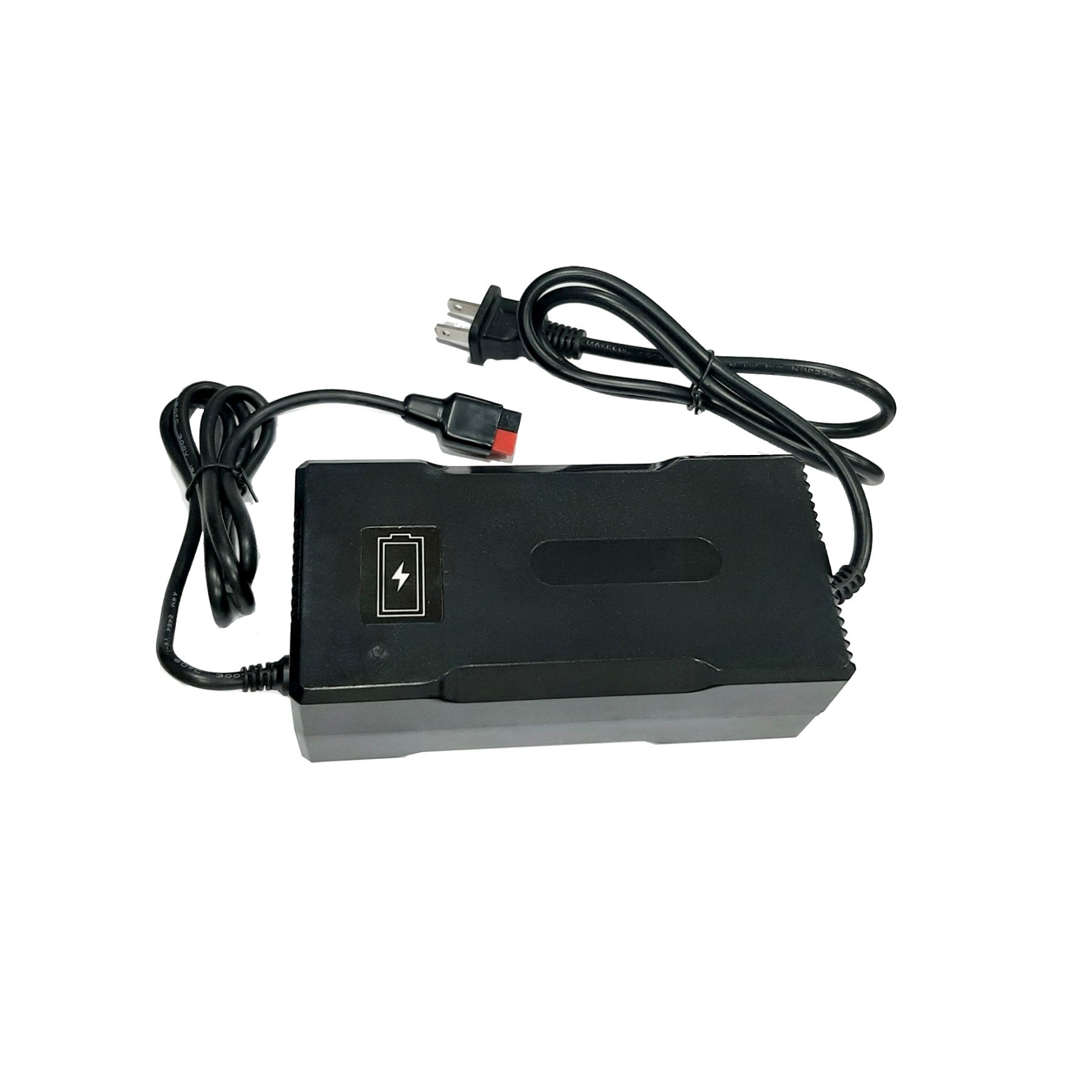

The Aegis Battery 72V 3A NMC Battery Charger is a state of the art energy transfer device made and designed for 72V Lithium battery packs. This charger provides the required constant current, followed by constant voltage (CC/CV) charge profile for charging Li-ion batteries. This charger includes an LED that changes from red to green once the battery has reached full capacity.

Specifications

Model: CRG-07203P
Product Case: Plastic
Battery Chemistry: NMC Lithium-Ion

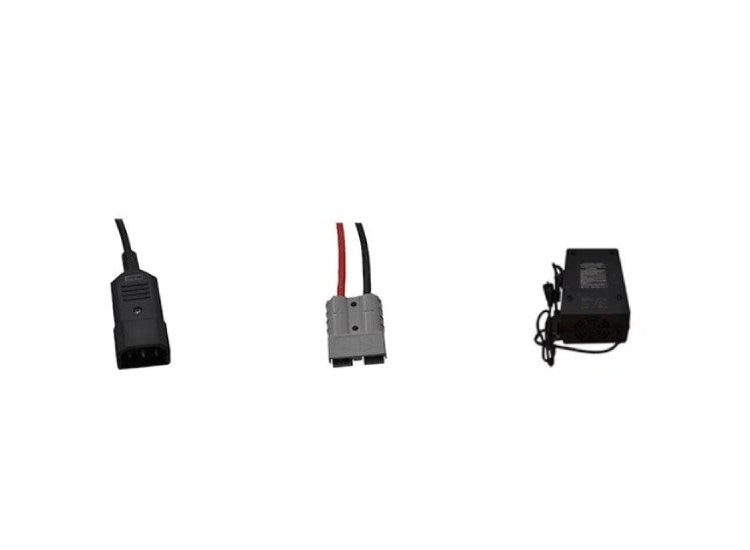

Charging Connector:


PP45 Anderson
Input:

AC110V-240V, 50/60HZ
Output:

84V 3A (CC/CV Charge Profile for 72V Li-ion Batteries)
Capacity (Ah): 20 Ah or lower (recommended)
Weight: 0.3 kg (0.67 lb)
Dimension (L x W x H): 6 in. x 3 in. x 2 in.
Normal Charge Current: 3.0 Amps
Charge Temperature: 0°C to 45°C
Storage Humidity: 60±25%R.H
Charger Protections*:

Overheat protection,
Overpower protection,
Overcurrent protection,
Overvoltage protection,
Reverse connection protection

  *Protections should also be integrated into Battery Pack BMS
